Neocortex
Cerebras CS-2, the world’s most powerful AI system, is the main compute element of Neocortex.
Unlocking Interactive AI Development for Rapidly Evolving Research
Neocortex is a highly innovative resource that targets the acceleration of AI-powered scientific discovery by greatly shortening the time required for deep learning training and by fostering greater integration of artificial deep learning with scientific workflows. The revolutionary hardware in Neocortex facilitates the development of more efficient algorithms for artificial intelligence and graph analytics.
With Neocortex, users can apply more accurate models and larger training data, scale model parallelism to unprecedented levels, and avoid the need for expensive and time-consuming hyperparameter optimization.
Is there a fee to use Neocortex?
There is no cost to use Neocortex for non-proprietary research. Users conducting proprietary research can find out more by requesting affiliation through the center’s Corporate Affiliates Program.
Is Neocortex a good fit for my research?
Four types of applications are supported on Neocortex. More detailed information on each type and what it involves can be found in the Neocortex documentation.
Choose any of the topics below to learn more about using Neocortex
Research projects
Research on Neocortex spans topics from NLP through physics, chemistry and biology. See some of the exciting projects using Neocortex to advance knowledge.
Getting an allocation
See how to apply, including eligibility requirements and the Neocortex Acceptable Use Policy.
Training
Training on the Neocortex system presents a system overview of this innovative platform for AI and ML research, and insights on how to best take advantage of its unique hardware, software, and capabilities.
User guide
Learn about the applications that are supported and how to conduct your research on Neocortex.
Questions? Contact us at neocortex@psc.edu.
System specifications

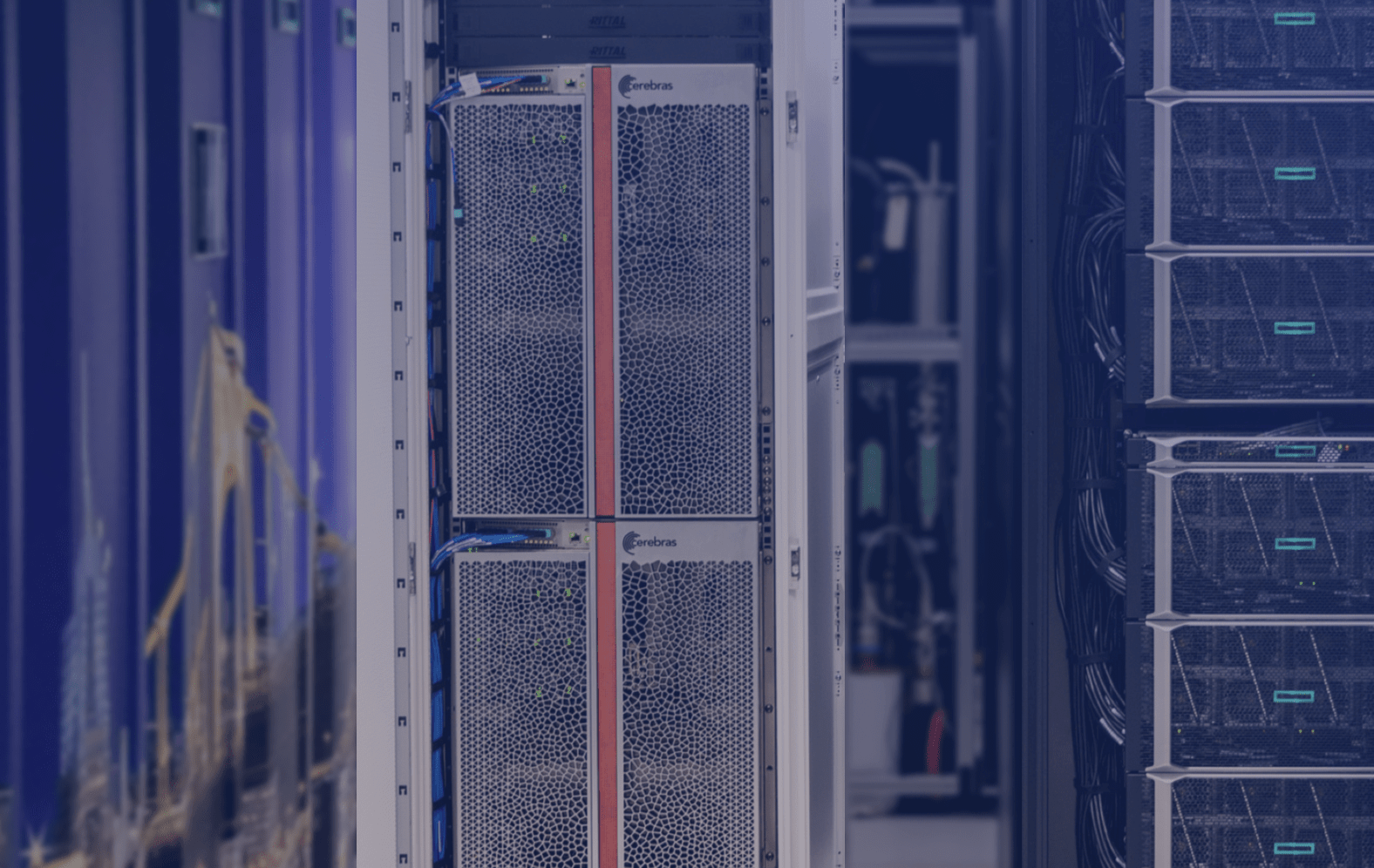

Neocortex features two Cerebras CS-2 systems and an HPE Superdome Flex HPC server robustly provisioned to drive the CS-2 systems simultaneously at maximum speed and support the complementary requirements of AI and HPDA workflows.
Neocortex is federated with PSC’s flagship computing system, Bridges-2, which provides users with:
- Access to the Bridges-2 filesystem for management of persistent data
- General purpose computing for complementary data wrangling and preprocessing
- High bandwidth connectivity to other ACCESS sites, campus, labs, and clouds
Cerebras CS-2
Each CS-2 features a Cerebras WSE-2 (Wafer Scale Engine 2), the largest chip ever built.
- AI processor:
-
Cerebras Wafer Scale Engine 2
- 850,000 Sparse Linear Algebra Compute (SLAC) Cores
- 2.6 trillion transistors
- 46,225 mm² 40 GB SRAM on-chip memory
- 20 PB/s aggregate memory bandwidth
- 220 Pb/s interconnect bandwidth
- System I/O:
- 1.2 Tb/s (12 × 100 GbE ports)
HPE Superdome Flex
- Processors
-
32 x Intel Xeon Platinum 8280L
- 28 cores, 56 threads each
- 2.70-4.0 GHz
- 38.5 MB cache
- Memory
- 24 TiB RAM, aggregate memory bandwidth of 4.5TB/s
- Local disk
-
32 x 6.4TB NVMe SSDs
- 204.6 TB aggregate
- 150 GB/s read bandwidth
- Network to CS systems
-
24 x 100 GbE interfaces
- 1.2 Tb/s (150 GB/s) to each Cerebras CS system
- 2.4 Tb/s aggregate
- Interconnect to Bridges-2
-
16 Mellanox HDR-100 InfiniBand adapters
- 1.6 Tb/s aggregate
- OS
- Red Hat Enterprise Linux
Acknowledgment in publications
Please use the following citation when acknowledging the use of computational time on Neocortex:
Buitrago P.A., Nystrom N.A. (2021) Neocortex and Bridges-2: A High Performance AI+HPC Ecosystem for Science, Discovery, and Societal Good. In: Nesmachnow S., Castro H., Tchernykh A. (eds) High Performance Computing. CARLA 2020. Communications in Computer and Information Science, vol 1327. Springer, Cham. https://doi.org/10.1007/978-3-030-68035-0_15
This material is based upon work supported by the National Science Foundation under Grant Number 2005597. Any opinions, findings, conclusions, or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation.
